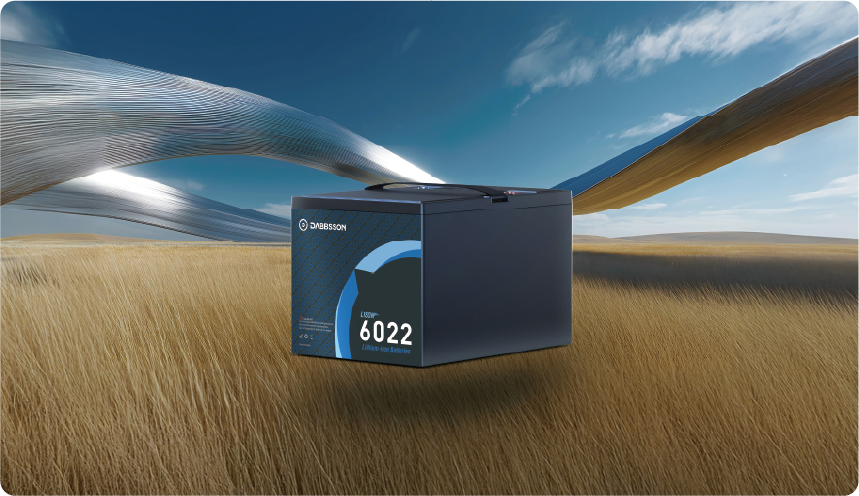

Lison 6022

Nominal Capacity: 20A

Nominal Voltage: 64V

Cell Material: LiFePO4

Configuration: 20S1P

Dimensions (mm): 181*231*170

Package Dimensions (mm): 255*195*205

Weight: 8.5kg
Specifications

Model

Lison 6022

Nominal Capacity

20A

Nominal Voltage

64V

Cell Material

LiFePO4

Configuration

20S1P

Dimensions (mm)

181*231*170

Package Dimensions (mm)

255*195*205

Weight

8.5kg

Continuous Discharge Current

35A（ 90%Discharge ）

Peak Discharge Current

60A 10S ,100A 1S

Communication Method

Bluetooth

Protection Level

IP67

Matched Motors

≤800W

Charging Parameters

64V/3A/10A/16A

Operating Temperature

Charge - 10 ~ 55°C；

Discharge - 20 ~ 60°C
