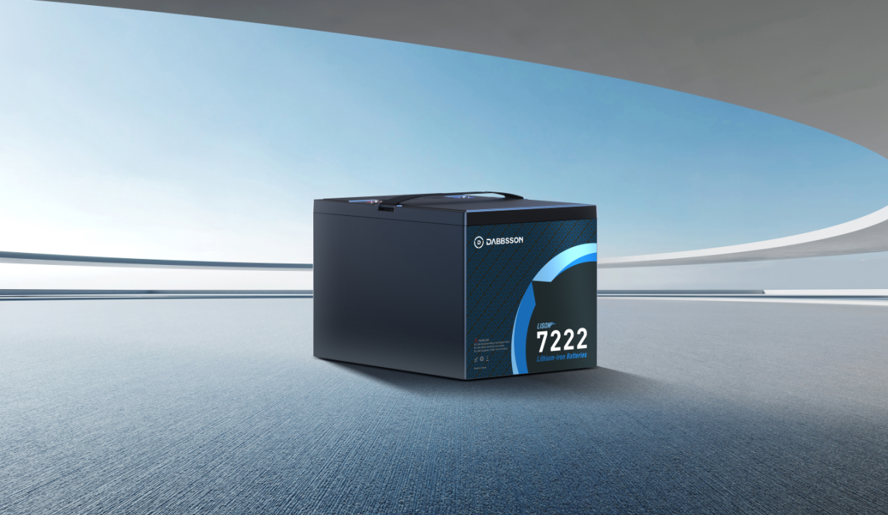

| Electric vehicle - grade semi - solid LiFePO4 battery |
 | More durable and safer than lead - acid batteries |
| Real - time understanding of battery status and power via a self-developed app with Bluetooth connection |
 | BMS (Battery Management Chip and System) |
 | 1200 cycles of charging and discharging |
 | Reliable battery protection structure design |
 | Parallel Connection (maximum support for two packs) |
Model | Lison 7222 |
| Nominal Capacity | 20A |
Nominal Voltage | 76.8V |
| Cell Material | LiFePO4 |
| Configuration | 24S1P |
| Dimensions (mm) | 181*231*170 |
| Package Dimensions (mm) | 255*195*205 |
Weight | 10kg |
Continuous Discharge Current | 30A（Full discharge） 35A（70%Discharge） |
Peak Discharge Current | 60A 10S ,100A 1S |
| Communication Method | Bluetooth |
Protection Level | IP67 |
Matched Motors | ≤1200W |
Charging Parameters | 76.8V/3A/10A/16A |
Operating Temperature | Charge - 10 ~ 45°C； Discharge - 20 ~ 60°C |
