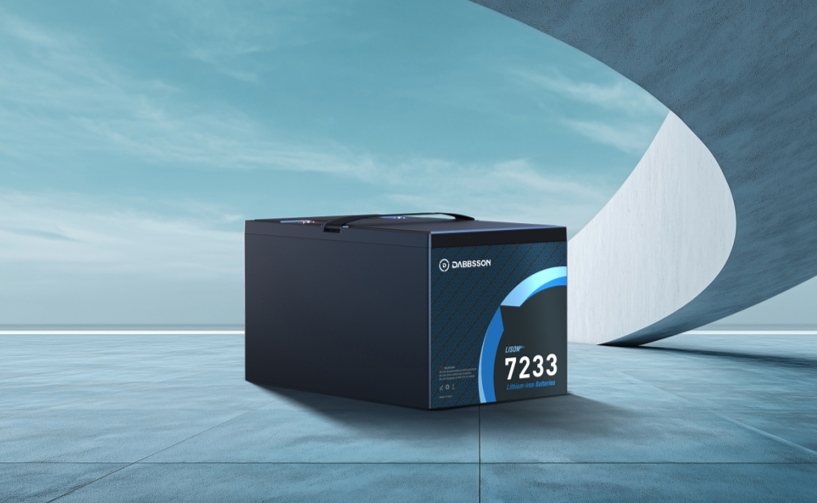

Lison 7233

Nominal Capacity: 30A

Nominal Voltage: 76.8V

Cell Material: LiFePO4

Configuration: 24S1P

Dimensions (mm): 181*310*170

Package Dimensions (mm): /

Weight: 15kg
Specifications

Model

Lison 7233

Nominal Capacity

30A

Nominal Voltage

76.8V

Cell Material

LiFePO4

Configuration

24S1P

Dimensions (mm)

181*310*170

Package Dimensions (mm)

/

Weighy

15kg

Continuous Discharge Current

50A

Peak Discharge Current

80A Until over temperature protectio

Communication Method

Bluetooth

Protection Level

IP67

Matched Motors

≤1500W

Charging Parameters

76.8V/5A/10A/16A

Operating Temperature

Charge - 10 ~ 55°C；

Discharge - 20 ~ 60°C
