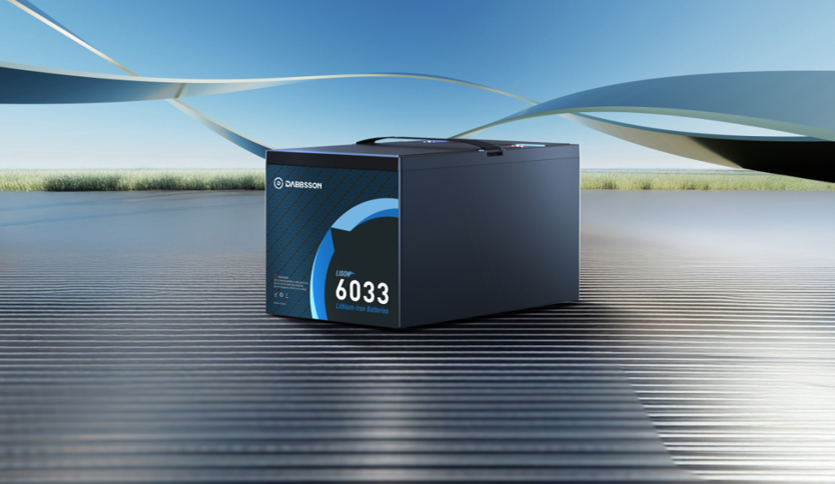

Lison 6033

Nominal Capacity 30A

Nominal Voltage 64V

Cell Material LiFePO4

Configuration 20S1P

Dimensions (mm) 181*231*170

Package Dimensions (mm) /

Weight 12.5kg
Specifications

Model

Lison 6033

Nominal Capacity

30A

Nominal Voltage

64V

Cell Material

LiFePO4

Configuration

20S1P

Dimensions (mm)

181*264*170

Package Dimensions (mm)

/

Weight

12.5kg

Continuous Discharge Current

50A

Peak Discharge Current

80A Until over temperature protection

Communication Method

Bluetooth

Protection Level

IP67

Matched Motors

≤1200W

Charging Parameters

64V/5A/10A/16A

Operating Temperature

Charge - 10 ~ 55°C；

Discharge - 20 ~ 60°C
