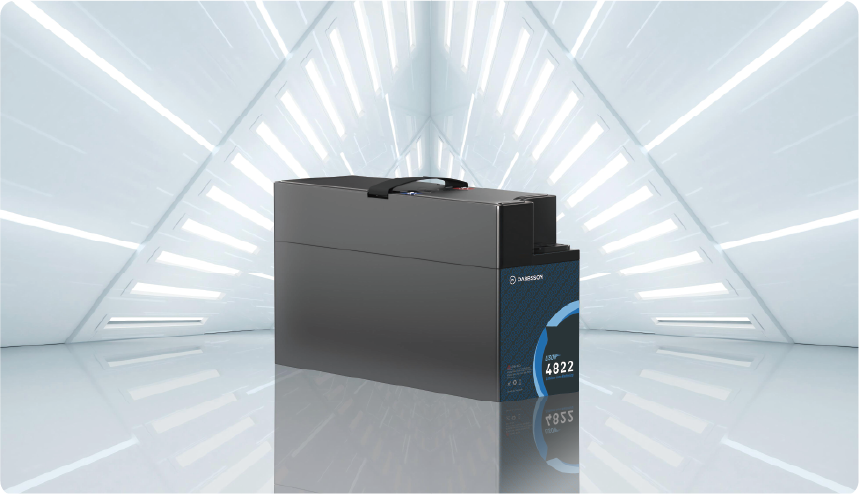

Lison 4822

Nominal Capacity 20Ah

Nominal Voltage 51.2V

Cell Material LiFePO4

Configuratio 16S1P

Dimensions (mm) 302*170*99

Package Dimensions (mm) 350*150*220

Weight 7kg
Specifications


Model

Lison 4822

Nominal Capacity

20Ah

Nominal Voltage

51.2V

Cell Material

LiFePO4

Configuratio

16S1P

Dimensions (mm)

302*170*99

Package Dimensions (mm)

350*150*220

Weight

7kg

Continuous Discharge Current

30A

Peak Discharge Current

50A 10S ,100A 1s

Communication Method

Bluetooth

Protection Level

IP67

Matched Motors

≤400W

Charging Parameters

51.2V/5A/7A/16A

Operating Temperature

Charge - 10 ~55°C；

Discharge - 20 ~ 60°C
